Indoor Ultra-Thin P8 Flexible Transparent LED Display with 85% Transparency and 3500 Nits Brightness
1. Flexible Transparent LED Film Display Technical Parameters:
| Pixel Pitch | 8mm(x*y) |
| Pixel | 15,625 points/㎡ |
| LED specification | SMD2121 (light drive in one) |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*240mm |
| Module Resolution | 125*30 |
| Permeability | ≥85% |
| Box wiring mode | Internal wiring (clean back) |
| Weight | ≤ 7KG/㎡ |
| White balance brightness | ≥3500cd/㎡ |
| Peak power consumption | 600 W/㎡ |
| Average power consumption | About 200 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840hz |
| Grayscale level | 16Bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| working temperature | -20~50 ℃ |
| Theoretical service life | 100000 hours |
| Warranty | 2 years |
2. Flexible Transparent LED Screen Feature Highlights:
Tailored for indoor scenarios like retail stores, leisure venues, supermarkets, and office buildings, this screen blends seamlessly with diverse spaces. It boasts an ultra-thin 2.5mm profile, customizable panel sizes, and flexible pixel configurations (P4/P6/P8/P10) to fit varied installation needs. Equipped with ≤5000 cd/㎡ brightness, a 140°/140° wide viewing angle, and a 2-year warranty, it delivers crisp, reliable visuals—ideal for elevating advertising impact and digital signage experiences in high-foot-traffic areas.
3. Advantages of the Flexible Transparent LED Screen:
① Outstanding Visual Applications

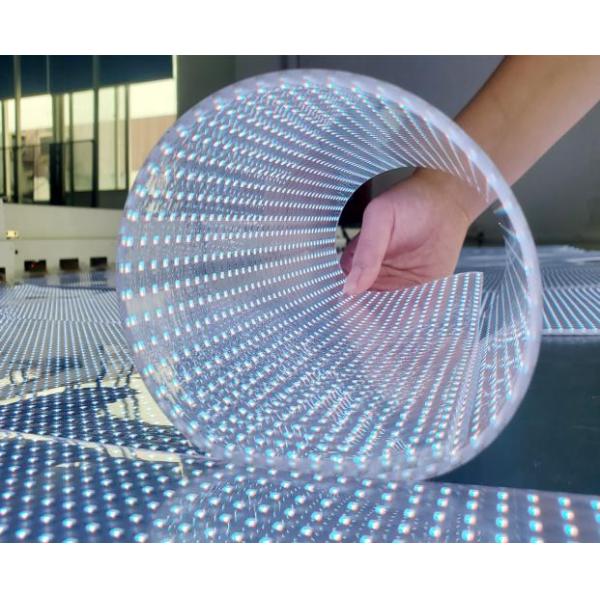

This flexible transparent LED screen delivers a unique visual experience with ultra-high transparency performance, can be bent freely for flexible installation, while requiring no steel structure during setup.
② Ultra-Thin and Ultra-Light
The film screen has a thickness of 1-3mm and weighs less than 7kg/㎡.
③ Wide Viewing Angle
Boasting a 140° viewing angle (horizontal and vertical), it delivers zero blind spots and no color distortion. This ensures clear visuals for audiences across a larger area, effectively attracting more people and boosting foot traffic.
④ Superior Longevity
It adopts a high-quality LED light source, boasting a lifespan of over 100,000 hours for long-lasting, reliable performance.
|
|
Indoor Ultra-Thin P8 Flexible Transparent LED Display with 85% Transparency and 3500 Nits Brightness Images
|
