High Resolution Sports Led Display Screen , P8 Football Advertising Boards

Brand Name : TBC

Model Number : Q8

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

MOQ : 10sqm

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10,000sqm/month

Delivery Time : 25days

Packaging Details : Flight Case

Pixel : 8mm

Weight : 50kg

Size : 1920x960mm

Refresh : 1920Hz

Contrast : 3000:1

Material : Aluminum

Price : Negotiable

Contact Now

Outdoor P8mm Led Sport Perimeter Stadium LED Display Screen with High Resolution 1920Hz

Application:

Outdoor P8mm Led Sport Perimeter Stadium LED Display Screen with High Resolution 1920Hz are the most classic design of led stadium perimeter, it's durable, reliable and easy to use, widely applied for all kinds of football, basket ball stadium.

Features and Advantages:

Mechanical

Easy maintenance. Module / cabinet change time <1 min, without affecting running system – i.e. hot-swappable.
Special designed mechanism for access gates at several locations (optional), with no signal interruption.
Mechanical system to align the cabinet, and minimise gaps between cabinets.
Black non-glare coating on face-plate, and black/dark neutral colours on cabinet.
IP65 front and IP54 rear
Rubber louvers front and top to protect cabinets from impact and players from injuries
Flight case designed for efficient storage and shipping (for transportable systems).

Content Control / Data Interfacing

Optional: Individual control of brightness, gamma, colours of every single pixel/ module/cabinet.
Default pictures (auto-switch feature) installed and enabled (set to static shared-rotation) in case of total connection loss with server.
System viewed and operated as one single screen by control software.
Control signal connection via two redundant feeding points. Fibre optic data cabling from dedicated controller locations to the two return side corners.
Data ring loop configured; if one connection fails an automatic switch activates data source from the opposite section.

Electrical

European-voltage system (220-240V, 50Hz).
Single-PSU-failure tolerant concept.
Heavy, high flex rubber cabling for cold enviroment outdoor use.
EMC protection to highest EU standards and regulations.

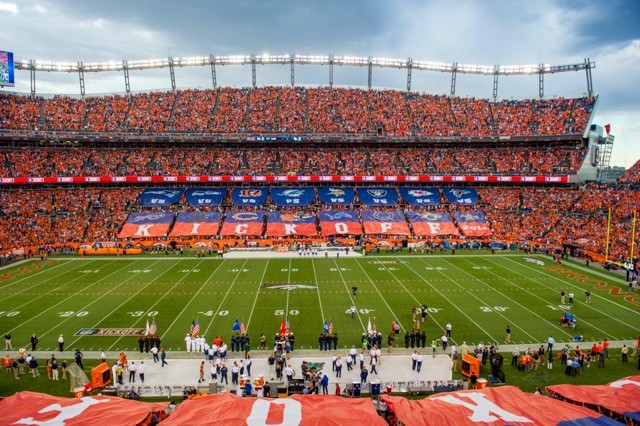

Pictures

High Resolution Sports Led Display Screen , P8 Football Advertising Boards

Parameters:

Brightness	nits	6000
Color temperature	deg.k	3200 ~ 9300
Viewing angle - Horizontal	deg.	160(+80/-80)
Viewing angle - Vertical	deg.	160(+80/-80)
Cabinet weight	kg	50
Cabinet width	mm	960
Cabinet height	mm	960
Cabinet depth	mm	150
Cabinet area	sq. m.	0.92
Cabinet material		Cold Steel
Aspect ratio		4:3
Ingress protection (Front/Rear)	IP	IP65/IP54
Operating temperature range	deg. C	- 20 to 50
Operating humidity range	HR	10％ to 90％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	8
Pixel matrix per cabinet		120x120
Pixels per cabinet		14400
Lines per meter		125
Pixels per sq. meter		15625
LEDs per sq. meter		15625
Recommended minimum viewing distance	m	8
Colours		281trillion
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Digital processing	bit	16
Frame rate	Hertz	60
Display refresh rate	Hertz	1920
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Input power (max/avg)	Watts per sq.m	850/290
MTBF	Hours	≥10000
Lifetime (50%Brightness)	Hours	≥100000
Module brightness uniformity		＜5％
Blind spot rate		＜0.0001
Earth leakage current	mA	＜2
Red wavelength	nm	623
Green wavelength	nm	525
Blue wavelength	nm	470
Panel input format (with video processor)		VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection		CAT6 cable/Fiber
Operating system		Windows(XP/Vista/7/8/10)
Control distance		Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
