Outdoor Billboard SMD Full Color P10 LED Screen Fixed Installation
Quick Details:
1, Pixel Pitch: 10mm.
2, RGB Full colors: 281trillions.
3, SMD 3in1, Wide viewing angle: 160°/ 160°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Cabinet Size: 960x960x150mm.
6, Recommended minimum viewing distance: 10m.
Description:
TBC Outdoor LED Billboards include fixed installation outdoor led display, the pixel various from 4mm, 5mm, 6mm, 6.77mm, 10mm, 12mm, 16mm. The P4, P5 and P10 series are the most cost-effective and stable outdoor led boards.
Features and Advantages:
1, High brightness up to 9,000nits, visible from every direction even direct face to sun.
2, Large viewing angle, up to 160° horizontally and 160° vertically, image no distortion.
3, Cabinet design lightweight, side handle for easy carrying and assemble.
4, Level IP65 waterproof, durable for any weather condition.
5, Meanwell power supply, saving power and ensure long lifespan up to 100,000hours.
6, Digital process: 16bits, High contrast ratio 4,000:1, Vivid color.
Parameters:
| Parameter | Unit | Value |
| Brightness | nits | 6000 |
| Color temperature | deg.k | 3200 ~ 9300 |
| Viewing angle - Horizontal | deg. | 160(+80/-80) |
| Viewing angle - Vertical | deg. | 160(+80/-80) |
| Cabinet weight | kg | 53 |
| Cabinet width | mm | 960 |
| Cabinet height | mm | 960 |
| Cabinet depth | mm | 150 |
| Cabinet area | sq. m. | 0.92 |
| Cabinet material | | Cold Steel |
| Aspect ratio | | 1:1 |
| Ingress protection (Front/Rear) | IP | IP65/IP54 |
| Operating temperature range | deg. C | - 20 to 50 |
| Operating humidity range | HR | 10％ to 90％ |
| Pixel type and configuration | R/G/B | SMD 3in1 |
| Pixel pitch | mm | 10 |
| Pixel matrix per cabinet | | 96x96 |
| Pixels per cabinet | | 9216 |
| Lines per meter | | 100 |
| Pixels per sq. meter | | 10000 |
| LEDs per sq. meter | | 10000 |
| Recommended minimum viewing distance | m | 10 |
| Colours | | 281trillion |
| Gray scale | Levels | 65536 levels per colour |
| Brightness control | Levels | 100 |
| Digital processing | bit | 16 |
| Frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage | VAC | 110/240 |
| Input power frequency | Hertz | 50/60 |
| Input power (max/avg) | Watts per sq.m | 1000/350 |
| MTBF | Hours | ≥10000 |
| Lifetime (50%Brightness) | Hours | ≥100000 |
| Module brightness uniformity | | ＜5％ |
| Blind spot rate | | ＜0.0001 |
| Earth leakage current | mA | ＜2 |
| Red wavelength | nm | 623 |
| Green wavelength | nm | 525 |
| Blue wavelength | nm | 470 |
| Panel input format (with video processor) | | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV |
| Data interconnection | | CAT6 cable/Fiber |
| Operating system | | Windows(XP/Vista/7/8/10) |
| Control distance | | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
Application:

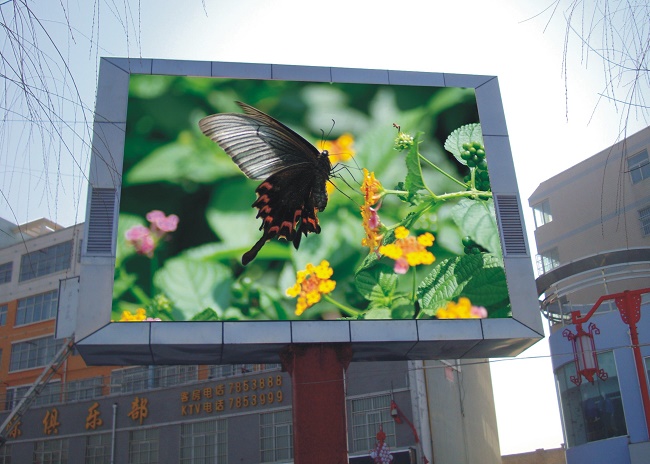

TBC permanent installation outdoor led video walls are widely used for commercial advertising or media broadcasting in building, road, airport, station, pole, square, stadium, school, public places and so on.
